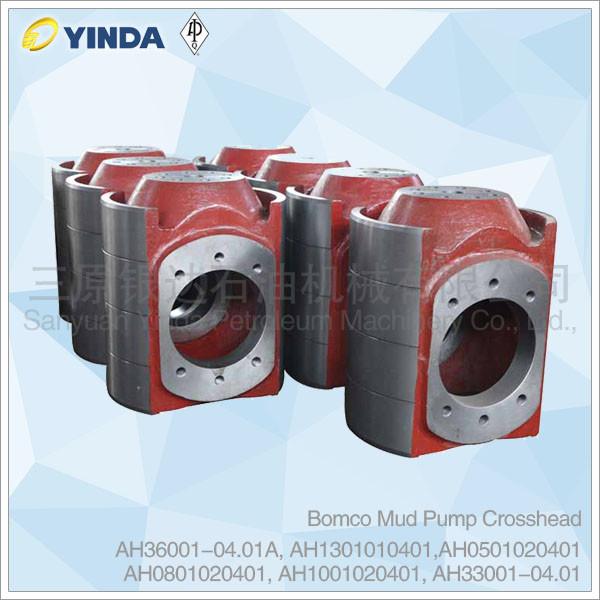

Bomco Mud Pump Crosshead, AH36001-04.01A, AH1301010401,AH0501020401
AH0801020401, AH1001020401, AH33001-04.01, AH34001-0
Crosshead: A system which creates linear reciprocating motion
derived from the crankshaft’s rotary motion through the connecting
rod. The reciprocating motion of the crosshead is applied to the
piston via the extension rod.
A crosshead is a mechanism used in large reciprocating engines to
eliminate sideways pressure on the piston. The crosshead of mud
pump produced by our company is made of high quality wear resistant
with special techniques. It features little deformation, higher
precision and very little tolerance.
The crosshead is the critical part on the power end of the mud
pump. It slides in the upper and lower guide plates, motivating the
intermediate draw bar to deliver driving force to the hydraulic
end. One of its ends fixes the intermediate draw bar. The cavity
connects the small end of the connecting rod through cross head
pin.
The material of the crosshead is nodular cast iron with the
strength of extension of more than 600MPa, which ensures high
intensity and abrasive resistance.
The difference between crossheads in metric system and British
system is the screw hole.
To guarantee close contact, the contact area of bore-hole of the
crosshead and the conical surface of the crosshead pin shall be
greater than 75%.
Crosshead has high accuracy and precious dimension and no
deformation. Besides F-500 mud pump that is cylindrical structure,
upper and lower guide structures are used for other mud pumps, so
that the concentricity can be adjusted by adding space under the
lower guide. Flange-bolts with pinhole fit are used for connecting
crosshead to extension rod.
The mode of mud pump from BOMCO, Rongsheng, HongHua
F500 mud pump, F1000 mud pump, F1300 mud pump, F1600 mud pump
Mud Pump Parts Model We Can Do
|
BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| HRSB | RSF-1300 | RSF-1600 | | | | | | |
RG | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | | | | |
Lanzhou | 3NB1000C | 3NB1300C | 3NB1600F | 3NB1600L |
| | | |
EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
Gardner Denver | PAH | P7 | P8/9 | P10/11 |
|
|
|
|
National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 |
|
Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | | | | |
TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | | | |
RUSSIA | UNBT-1180L | UNBT-950A | UNB-600 |
| | | | |
